NETIO 4x remote controlled programmable power sockets
  LAN
RJ45
WiFi IQRF Power
Outputs
ZCS / ZVS
smart switching
Power
measurement
Web-based
configuration
RS-232
serial port
Lua scripts
programmable
Scheduler
function
WatchDog
function
M2M APIs
Yes
Ext. - 4 - 22 values Yes - Yes Yes Yes 13 protocols
Yes Ext. - 4 - - Yes - Yes Yes Yes 13 protocols
2x - - 4 ZCS 22 values Yes Yes Yes Yes Yes 13 protocols

PowerCable Modbus

- Int. - 1 ZCS 6 values Yes - - - - Modbus/TCP
Telnet
PowerCable REST - Int. - 1 ZCS 6 values Yes - - - - XML,
JSON,
URL API
PowerCable IQRF - - Int. 1 ZCS 6 values - - - - - IQRF
PowerCable MQTT - Int. - 1 ZCS 6 values Yes - - - -

MQTT
MQTT-flex
HTTP Push (xml,json)

PowerCable OEM
(comming soon)
- Int. - 1 ZCS 7 values Yes - - - - On request



NETIO PowerCable MQTT 101x is a professional WiFi power socket featuring open API for integration with cloud IoT services.

The output socket can be controlled (On/Off) and electricity consumption measured (A, Wh, TPF, V, ..) from any IoT service. The WiFi socket supports the MQTT-...

NETIO PowerCable REST 101x is a smart WiFi power socket for integration with third-party systems using an open API.



PowerCable REST features electrical measurements and control of the output using one of three http-based REST protocols - XML, JSON or URL API



NETIO PowerCable IQRF 901x is a smart power extension cable that communicates over the IQRF LPWAN network (868 MHz).



The 230V/16A electrical socket features accurate electricity metering (A, V, W, TPF, kWh, Hz) and can be switched on and off with full IQRF Interoperable ...

NETIO PowerCable Modbus 101x is a smart WiFi power socket by NETIO products.



The output smart power outlet can be turned on/off over a web interface. The web interface also shows measured electrical values(V, A, kWh, W, Hz, TruePF).

NETIO PowerPDU 4C is a small 110/230V PDU (Power Distribution Unit). Each of the four IEC-320 C13 outlets can be independently controlled (On / Off / Reset / Toggle).

Electrical parameters (A, W, kWh, TPF, V, Hz) are measured with high accuracy at each outlet. The device features two LAN ports (...

NETIO 4All is programmable power socket communicating via MQTT, SNMP, Modbus and more

NETIO 4All is the most feature-rich module with 4x 230V/8A remotely-controlled power sockets connected to LAN and WiFi.


Each socket can be individually switched on/off and its electricity consumption metered.


The device can be used as a WiFi AP (access point), and an external antenna can...

NETIO 4 is power socket programmable in Lua scripting language

NETIO 4  is a module with 4x 230V/8A remotely-controlled smart power sockets connected to LAN and WiFi.


Each socket can be remotely switched on/off.


NETIO 4 can be controlled remotely using many M2M API protocols (SNMP v3, SIP, XML/HTTPs, MQTT, CGI, ..).

NETIO M2M API Interfaces

NETIO smart power sockets offer unique support for a wide range of various M2M (Machine to Machine) communication protocols. We strive to produce smart sockets that can communicate using all common protocols.

More about NETIO M2M API Interfaces

NETIO power control devices can communicate via M2M API Interface

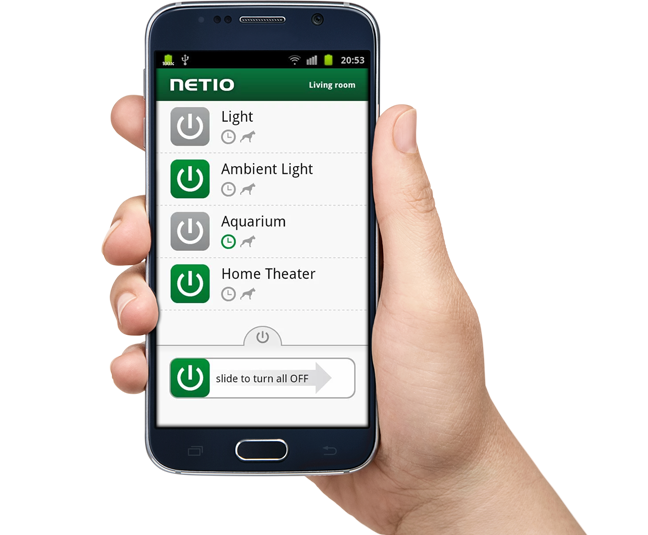

NETIO Mobile

The NETIO Mobile app allows you to control individual 110/230V sockets of one or more NETIO 4x (NETIO 4, NETIO 4All, NETIO 4C) smart socket products with a mobile phone or tablet.

Android iOS

Accessories

NETIO RM1 4C

Metal brackets to install one NETIO 4C or NETIO PowerPDU 4C device into a 1U space in a 19” rack frame. The package includes M6 screws to fasten the device in the 1U position.

Metal brackets to install one NETIO 4C device into a 1U space in a 19” rack frame.
NETIO RM2 2x4C

Metal brackets to install two NETIO 4C or NETIO PowerPDU 4C devices into a 1U space in a 19” rack frame. The package includes M6 screws to fasten the devices in the 1U position.

Metal brackets to install two NETIO 4C devices into a 1U space in a 19” rack frame
NETIO RM3 4C vertical

Metal brackets to fasten one NETIO 4C or NETIO PowerPDU 4C device to a vertical bar in a rack frame. In a 76cm or wider cabinet, the NETIO PowerPDU 4C can be fastened to the outer side of the vertical bars to occupy zero U space.

Metal brackets to fasten one NETIO 4C device to a vertical bar in a rack frame
NETIO RM4 4C universal

Universal metal brackets to fasten one NETIO 4C or NETIO PowerPDU 4C device e.g. to horizontal bars in a rack frame.

Universal metal brackets to fasten one NETIO 4C device e.g. to horizontal bars in a rack frame
NETIO RM5 N4

A metal bracket to fasten one NETIO 4 or NETIO 4All device to a vertical bar in a rack frame. In a 80cm or wider cabinet, the NETIO 4 / 4All can be fastened to the outer side of the vertical bars to occupy zero U space.

A metal bracket to fasten one NETIO 4 or NETIO 4All device to a vertical bar in a rack frame
PWR adapter US to EUR

A plug adapter for a 110/230V power cable with a US (NEMA) plug. The adapter fits into European FR (Type E) or DE (Type F – Schuko) sockets as a Europlug (CEE 7/7).

A plug adapter for a 110/230V power cable with a US (NEMA) plug.
PWR adapter UNI to IEC-320

A plug adapter for US (NEMA), UK or other 110/230V cables. The input C14 connector fits into a IEC-320 C13 socket (e.g. the output of NETIO 4C).



Adapter connecting many types of plugs to NETIO 4C (IEC320 plug)

Ask for a price or technical parameters

For device testing use name/password demo/demo
