21.02.2022

Check out our new accessories: horizontal and vertical rack holders MK2 & MK3 PowerBOX 19.

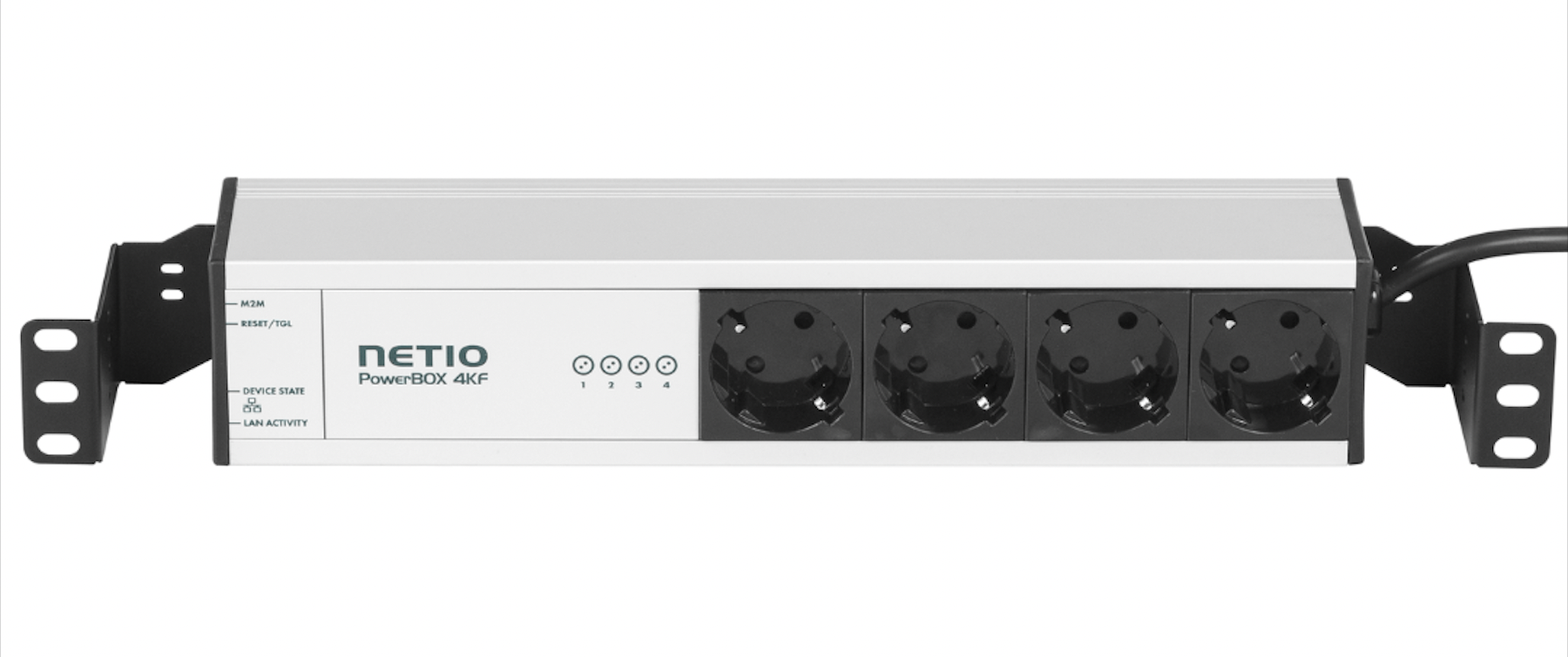

1. NETIO MK2 PowerBOX 19 horizontal - Metal brackets (2 pieces) for 1 unit of NETIO PowerBOX 3Px / 4Kx into a 1.5U space in a 19” rack frame. The package includes M6 screws to fasten the device in the 1.5U horizontal position.

  • Both parts of the holder slide into the PowerBOX aluminum profile from behind.
  •  PowerBOX 4KG (British power sockets version) is a bit longer than 4KF & 4KE, anyway it can be used for 1.5U 19” rack montage.
  •  PowerBOX device is bigger than 1U rack size, use another NETIO devices for standard 1U montage.
  •  Keep space on the sides for the Power cable on the right and RJ45 LAN cable on the left.

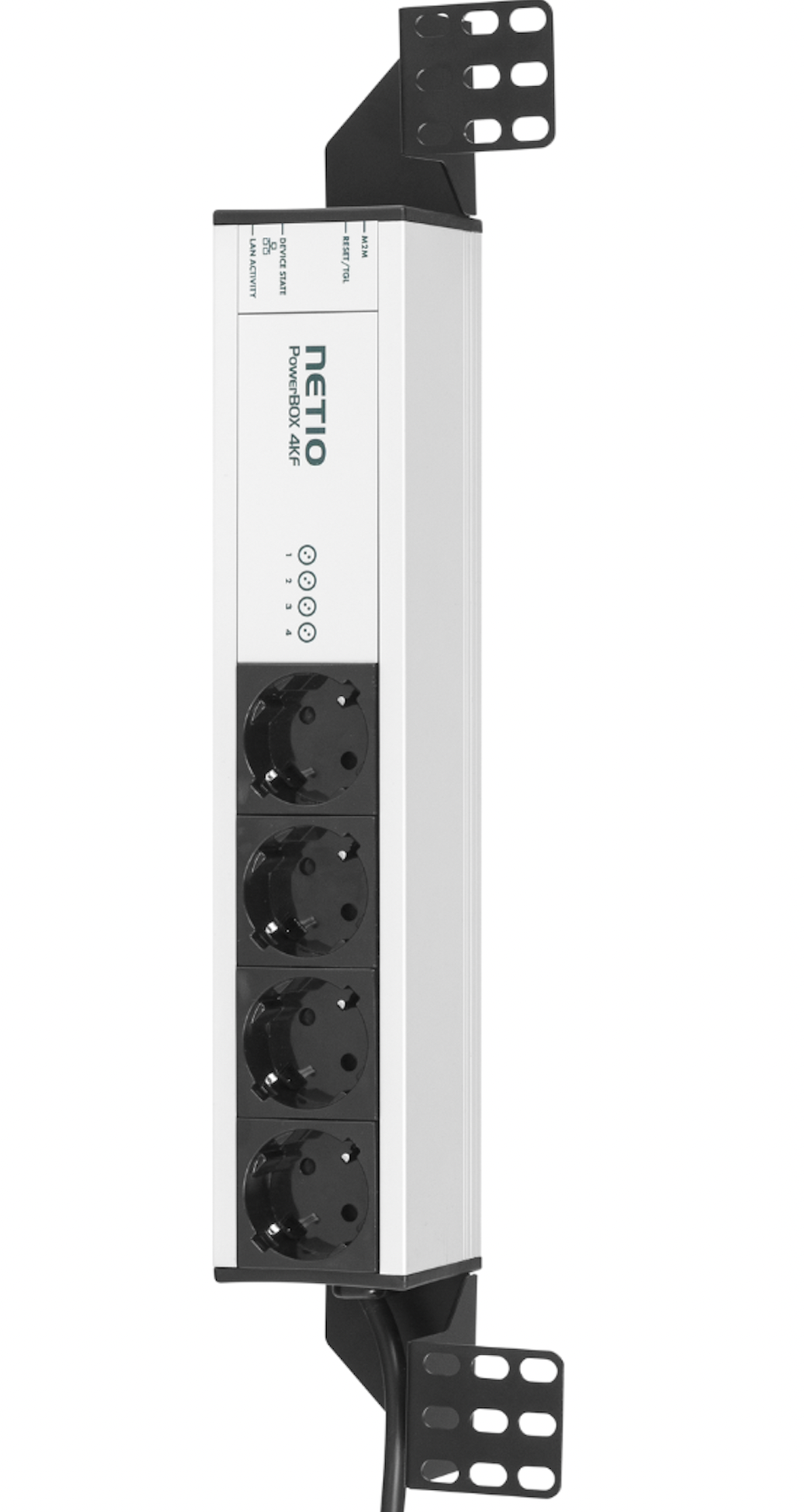

2. NETIO MK3 PowerBOX 19 vertical - Metal brackets to fasten 1 unit of NETIO PowerBOX 3Px / 4Kx to a vertical bar in a rack frame. The package includes 4x M6 screws to fasten the device.

In a 80cm or wider cabinet, the PowerBOX 3Px/4Kx can be fastened to the outer side of the vertical bars to occupy zero U space.

  •  Both parts of the holder slide into the PowerBOX aluminum profile from behind.
  •  Keep space on the sides for the Power cable on the bottom and RJ45 LAN cable on the top of the device.
  •  PowerBOX 4KG (British power sockets version) is a bit longer than 4KF & 4KE.
